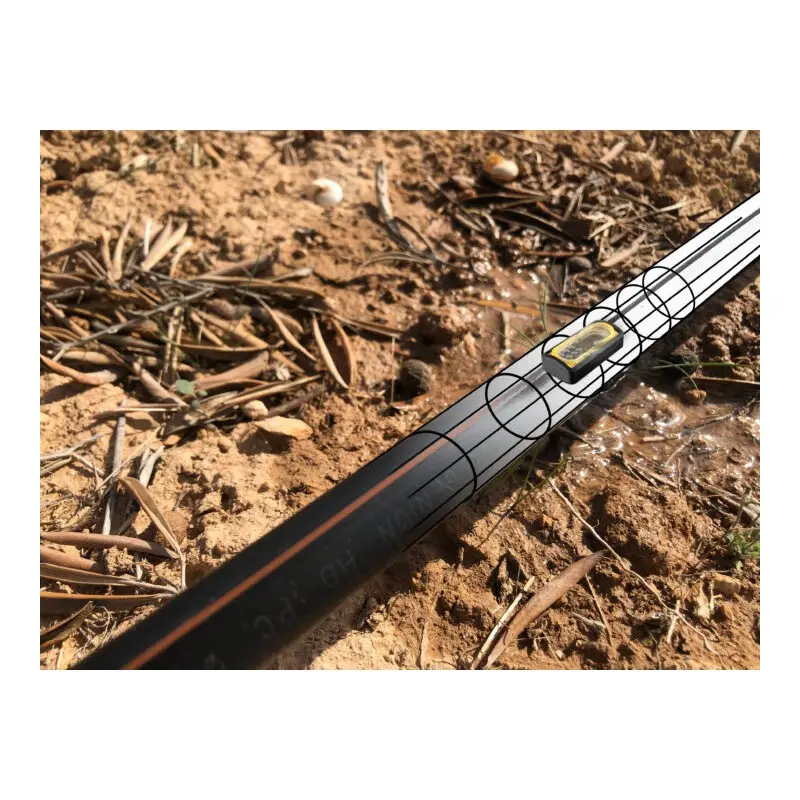

Heavywall irrigation dripline with integrated pressure-compensating and anti-suction flat dripper (PC AS).
Ideal for maximizing return on investment in irrigation systems.
Anti-cloggingPatented self-cleaning DS TECHNOLOGY labyrinth with the largest flow passages
Largest particle retention area in the HEX three-dimensional filter
UniformityConstant flow and very low CV thanks to the injected floating SILITEC membrane
Stable and precise self-compensation with the ELIPSIS chamber, minimizing mechanical stress on the membrane
Root protectionRoot-intrusion delaying effect through the PIR physical barrier
ReliabilityOnly manufacturer certified in accordance with ISO 9261. Guaranteed performance and quality, backed by a 5-year warranty
High impact resistance, UV protection, and resistance to irrigation chemicals
More than 8 years
Integrated self-compensating
PC AS
Sub-surface and on subface
Uneven terrain and flat terrain
PC
Compensating Pressure
Ideal for
Irrigation on Uneven Terrain
Constant flow rate regardless of inlet pressure
PC AS
Anti-Siphon Pressure Compensation
Ideal for
SUB-SURFACE DRIP IRRIGATION
Prevents the suction of particles from the soil when the system is turned off
CNL / NCNL
Unlimited Flow Rate
Ideal for
Pulse irrigation
Adjusts the flow rate to accommodate intermittent periods of high demand
CNL / NCNL perf
Perforated
Ideal for
Soilless crops: pots, bags, or containers
Perforated design optimized for substrates and soilless cultivation
| Type of dripper | Ideal for |
|---|---|
| PC | Irrigation on Uneven Terrain |
| PC AS | SUB-SURFACE DRIP IRRIGATION |
| CNL/HCNL | Pulse irrigation |
| CNL/HCNL pot | Soilless crops in pots, bags, or containers. |
| Expected service life | More than 10 years |
| Type of dripper | Integrated self-compensating |
| Surveying | Uneven and flat terrain |
| Type of installation | Underground, above ground, and in a pot |
| Functionality | PC, PC AS, CNL/HCNL |
| Dripline (Model-Thickness) | Ø16: 0.9 – 1.2 mm / Ø20: 1.1 – 1.2 mm |
